Tube Fittings

Instrumentation Tube Fittings

As conexões para tubos de instrumentação Aptek são utilizadas para garantir uma vedação estanque e livre de torque em diversas conexões de tubulação de processos e instrumentação. Esses produtos eliminam vazamentos dispendiosos e perigosos.

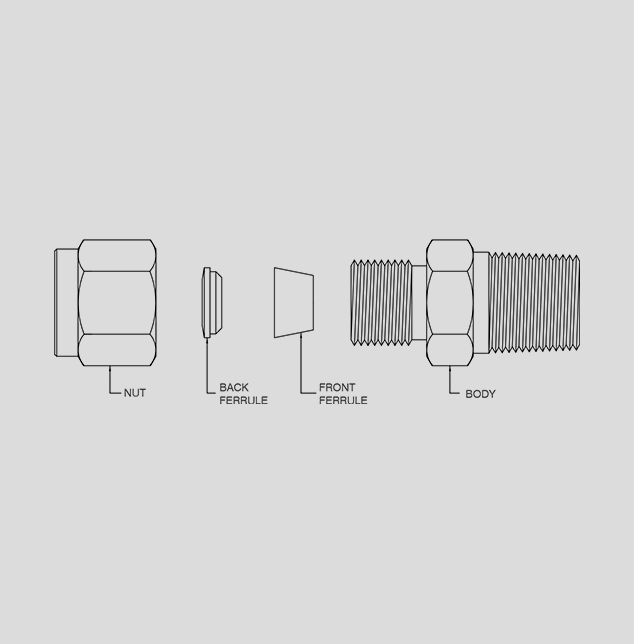

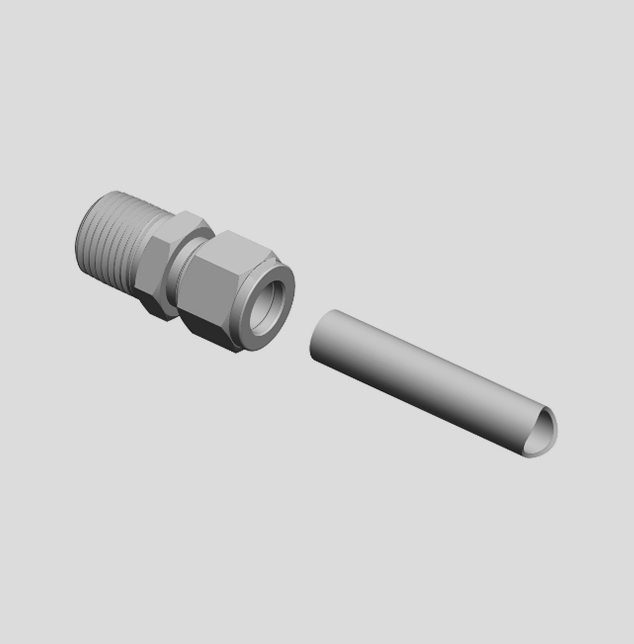

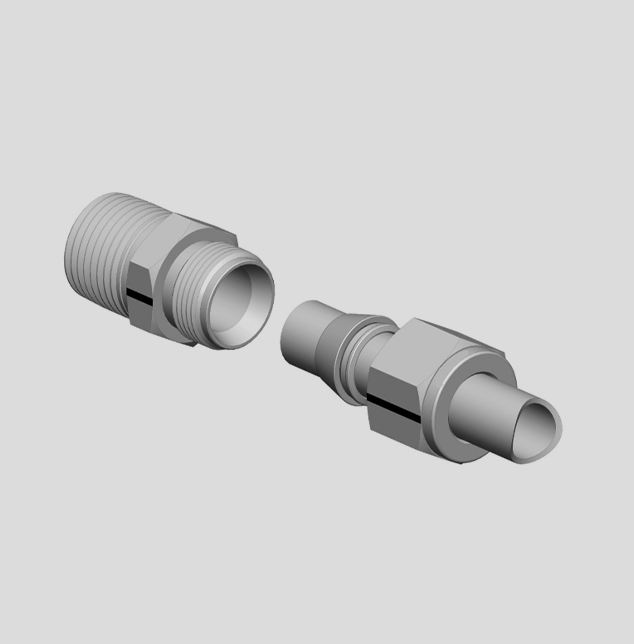

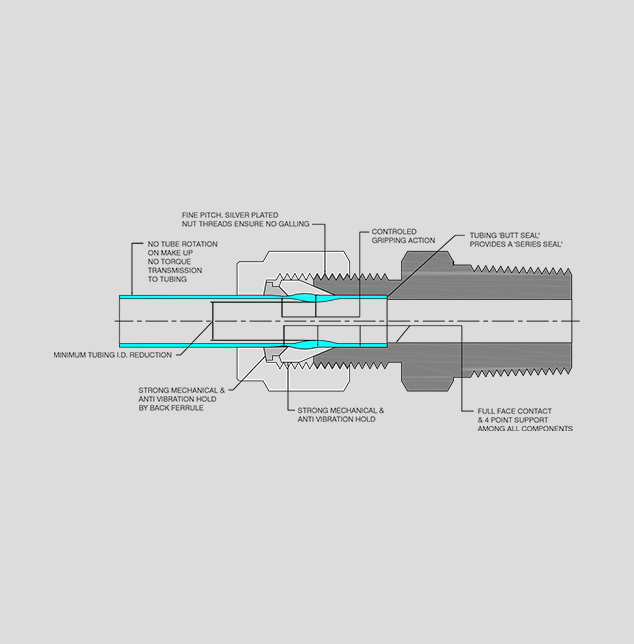

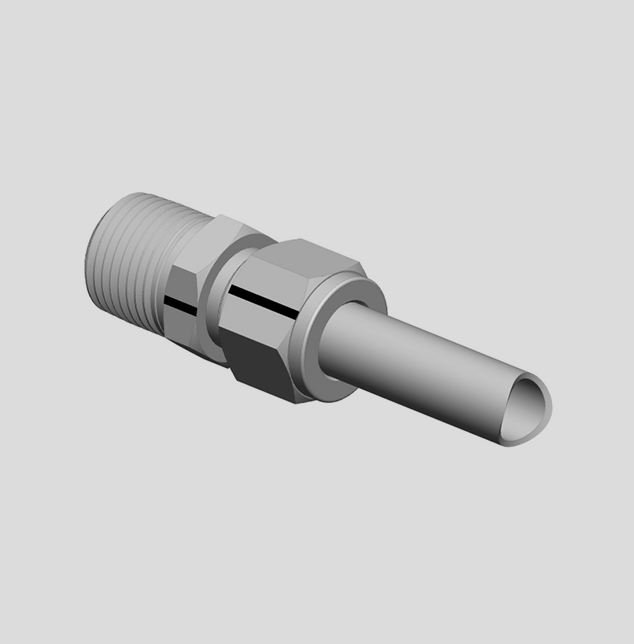

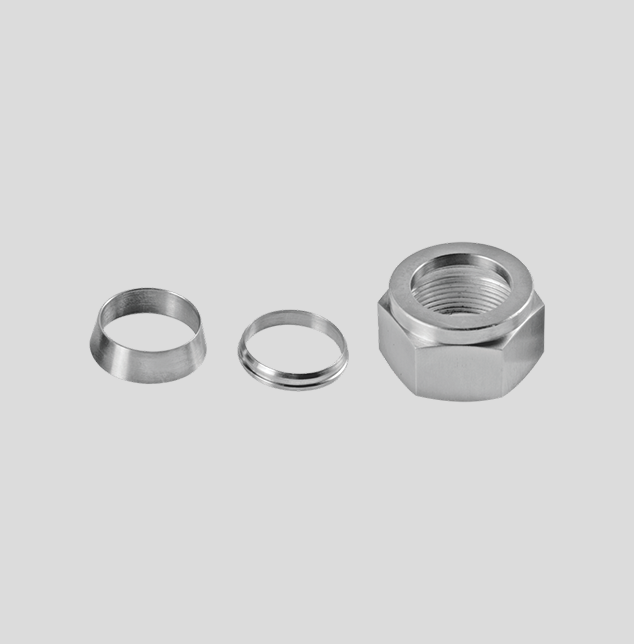

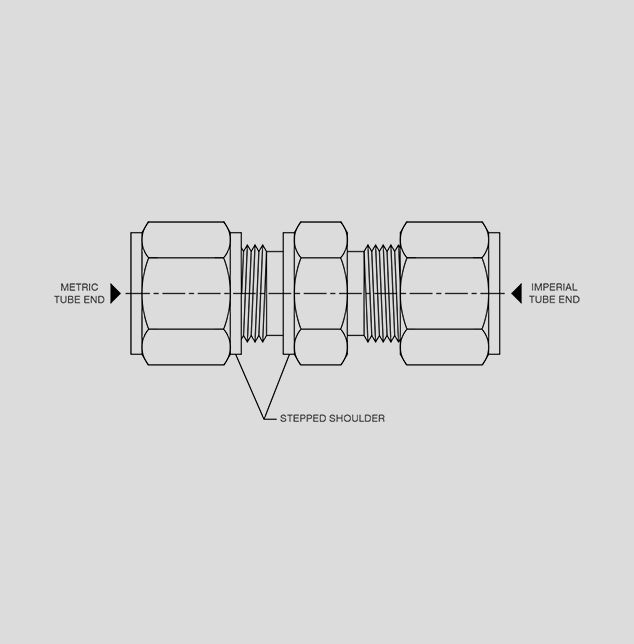

Conforme ilustrado na figura, a conexão padrão para tubos é composta por quatro peças. Essas peças são usinadas de acordo com normas internacionais para assegurar alta qualidade. As anilhas passam por processos de endurecimento e polimento para garantir uma melhor fixação por compressão (swaging). As porcas recebem um banho de prata para evitar o travamento das roscas. Embora a conexão seja constituída por quatro peças, ao ser instalada no tubo…

MATERIALS	BARSTOCK	FORGINGS
STAINLESS STEEL (316 & 304)	ASTM-A-276, ASTM-A-479, BS-970, DIN-4401	ASTM-A-182, BS-970, DIN-4401
BRASS	ASTM-B-16, ASTM-B-453, BS-2874	ASTM-B-124, BS-2872
STEEL MONEL	ASTM-A-108, ASTM-B-164, BS-3076	ASTM-A-576, ASTM-B-164, BS-3076

Pressure & Temperature rting for Instrumentation Table

MATERIALS	BARSTOCK	FORGINGS
STAINLESS STEEL (316 & 304)	ASTM-A-276, ASTM-A-479, BS-970, DIN-4401	ASTM-A-182, BS-970, DIN-4401
BRASS	ASTM-B-16, ASTM-B-453, BS-2874	ASTM-B-124, BS-2872
STEEL MONEL	ASTM-A-108, ASTM-B-164, BS-3076	ASTM-A-576, ASTM-B-164, BS-3076

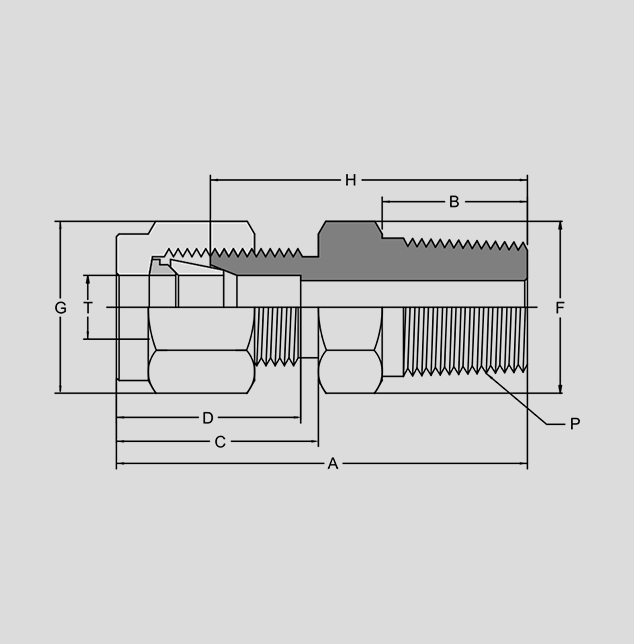

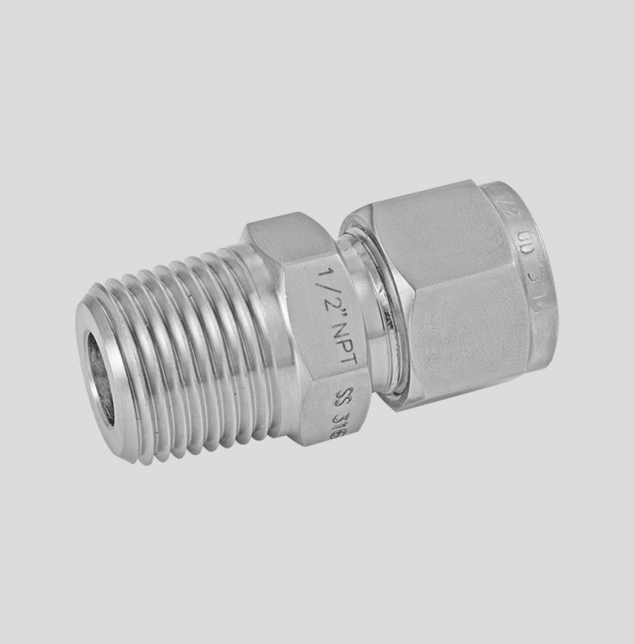

Male Connector

PART NO.	TO/D	P	A LENGTH	B	C	D	F BODY	G NUT	H BODY
FCI-1616	1/16	1/16	0.94	0.36	0.44	0.34	1-1/2	5/16	0.78
FCI-1818	1/8	1/8	1.16	0.39	0.63	0.53	9/16	7/16	0.88
FCI-1814	1/8	1/4	1.34	0.59	0.63	0.53	3/4	7/16	1.06
FCI-3618	3/16	1/8	1.17	0.39	0.63	0.54	9/16	9/16	0.91
FCI-1418	1/4	1/8	1.23	0.39	0.70	0.60	9/16	9/16	0.94
FCI-1414	1/4	1/4	1.41	0.59	0.70	0.60	3/4	9/16	1.12
FCI-1438	1/4	3/8	1.48	0.59	0.70	0.60	7/8	9/16	1.19
FCI-1412	1/4	1/2	1.70	0.78	0.70	0.60	1-1/16	9/16	1.41
FCI-5618	5/16	1/8	1.26	0.39	0.73	0.64	3/4	5/8	0.97
FCI-5614	5/16	1/4	1.45	0.59	0.73	0.64	3/4	5/8	1.16
FCI-3818	3/8	1/8	1.29	0.39	0.76	0.66	5/8	11/16	1.00
FCI-3814	3/8	1/4	1.48	0.59	0.76	0.66	3/4	11/16	1.19
FCI-3838	3/8	3/8	1.54	0.59	0.76	0.66	7/8	11/16	1.25
FCI-3812	3/8	1/2	1.73	0.78	0.76	0.66	1-1/16	11/16	1.44
FCI-1214	1/2	1/4	1.65	0.59	0.86	0.90	13/16	7/8	1.25
FCI-1238	1/2	3/8	1.65	0.59	0.86	0.90	7/8	7/8	1.25
FCI-1212	1/2	1/2	1.84	0.78	0.86	0.90	1-1/16	7/8	1.44
FCI-5838	5/8	3/8	1.65	0.59	0.86	0.96	15/16	1	1.25
FCI-5812	5/8	1/2	1.84	0.78	0.86	0.96	1-1/16	1	1.44
FCI-3412	3/4	1/2	1.84	0.78	0.86	0.96	1-1/16	1-1/8	1.44
FCI-3434	3/4	3/4	1.90	0.81	0.86	0.96	1-5/16	1-1/8	1.50
FCI-0134	1	3/4	2.10	0.81	1.04	1.23	1-3/8	1-1/2	1.62
FCI-0101	1	1	2.45	1.00	1.04	1.23	1-5/8	1-1/2	1.97

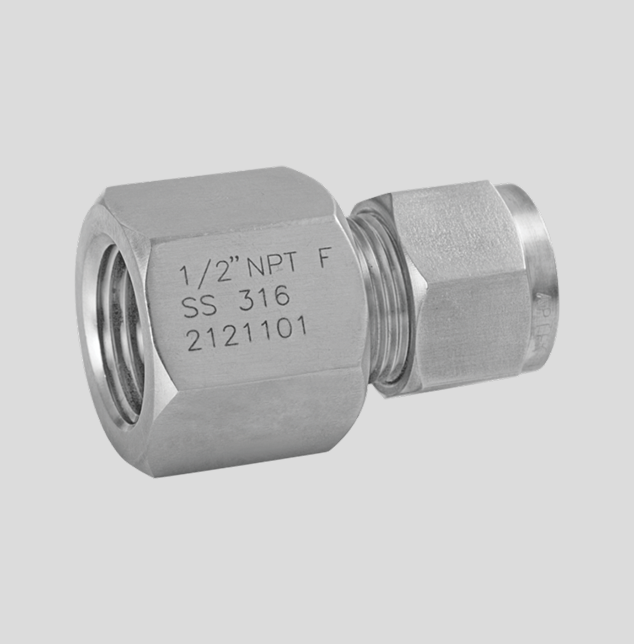

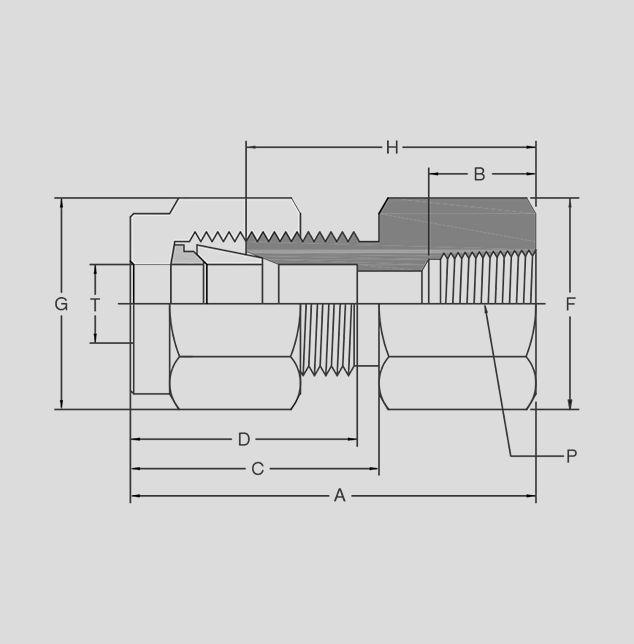

Female Connector

PART NO.	TO/D	P	A LENGTH	B	C	D	F BODY	G NUT	H BODY
FCI-1616	1/16	1/16	0.94	0.36	0.44	0.34	1-1/2	5/16	0.78
FCI-1818	1/8	1/8	1.16	0.39	0.63	0.53	9/16	7/16	0.88
FCI-1814	1/8	1/4	1.34	0.59	0.63	0.53	3/4	7/16	1.06
FCI-3618	3/16	1/8	1.17	0.39	0.63	0.54	9/16	9/16	0.91
FCI-1418	1/4	1/8	1.23	0.39	0.70	0.60	9/16	9/16	0.94
FCI-1414	1/4	1/4	1.41	0.59	0.70	0.60	3/4	9/16	1.12
FCI-1438	1/4	3/8	1.48	0.59	0.70	0.60	7/8	9/16	1.19
FCI-1412	1/4	1/2	1.70	0.78	0.70	0.60	1-1/16	9/16	1.41
FCI-5618	5/16	1/8	1.26	0.39	0.73	0.64	3/4	5/8	0.97
FCI-5614	5/16	1/4	1.45	0.59	0.73	0.64	3/4	5/8	1.16
FCI-3818	3/8	1/8	1.29	0.39	0.76	0.66	5/8	11/16	1.00
FCI-3814	3/8	1/4	1.48	0.59	0.76	0.66	3/4	11/16	1.19
FCI-3838	3/8	3/8	1.54	0.59	0.76	0.66	7/8	11/16	1.25
FCI-3812	3/8	1/2	1.73	0.78	0.76	0.66	1-1/16	11/16	1.44
FCI-1214	1/2	1/4	1.65	0.59	0.86	0.90	13/16	7/8	1.25
FCI-1238	1/2	3/8	1.65	0.59	0.86	0.90	7/8	7/8	1.25
FCI-1212	1/2	1/2	1.84	0.78	0.86	0.90	1-1/16	7/8	1.44
FCI-5838	5/8	3/8	1.65	0.59	0.86	0.96	15/16	1	1.25
FCI-5812	5/8	1/2	1.84	0.78	0.86	0.96	1-1/16	1	1.44
FCI-3412	3/4	1/2	1.84	0.78	0.86	0.96	1-1/16	1-1/8	1.44
FCI-3434	3/4	3/4	1.90	0.81	0.86	0.96	1-5/16	1-1/8	1.50
FCI-0134	1	3/4	2.10	0.81	1.04	1.23	1-3/8	1-1/2	1.62
FCI-0101	1	1	2.45	1.00	1.04	1.23	1-5/8	1-1/2	1.97

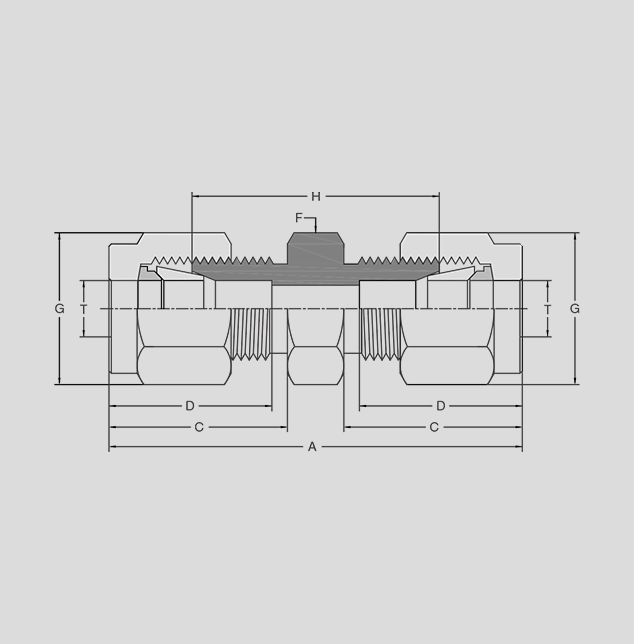

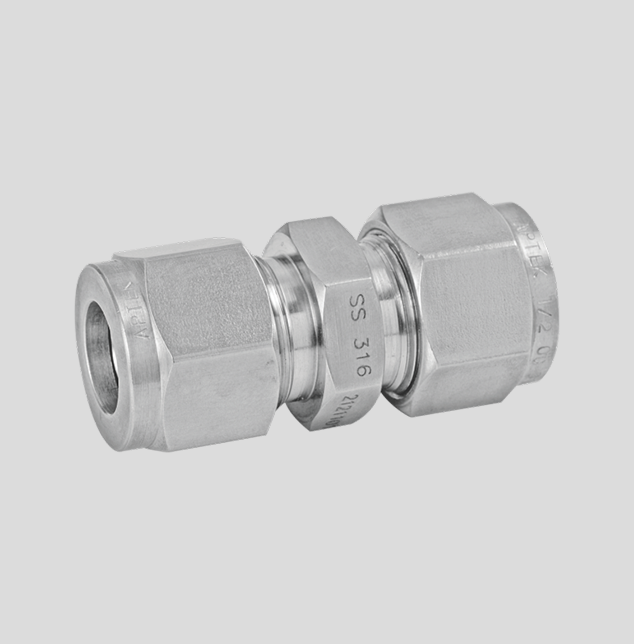

Equal Union

PART NO.	TO/D	A LENGTH	C	D	F BODY	G NUT	H BODY
EUI-16	1/16	1.00	0.44	0.34	5/16	5/16	0.689
EUI-18	1/8	1.44	0.63	0.53	1/2	7/16	0.881
EUI-36	3/16	1.47	0.63	0.54	7/16	1/2	0.945
EUI-14	1/4	1.61	0.70	0.60	0.551	9/16	1.043
EUI-56	5/16	1.68	0.73	0.64	0.551	5/8	1.102
EUI-38	3/8	1.77	0.76	0.66	5/8	11/16	1.189
EUI-12	1/2	2.02	0.86	0.90	7/8	7/8	1.220
EUI-58	5/8	2.05	0.86	0.96	0.945	1	1.26
EUI-34	3/4	2.11	0.86	0.96	1.102	1-1/8	1.319
EUI-01	1	2.55	1.04	1.23	1.417	1-1/2	1.594

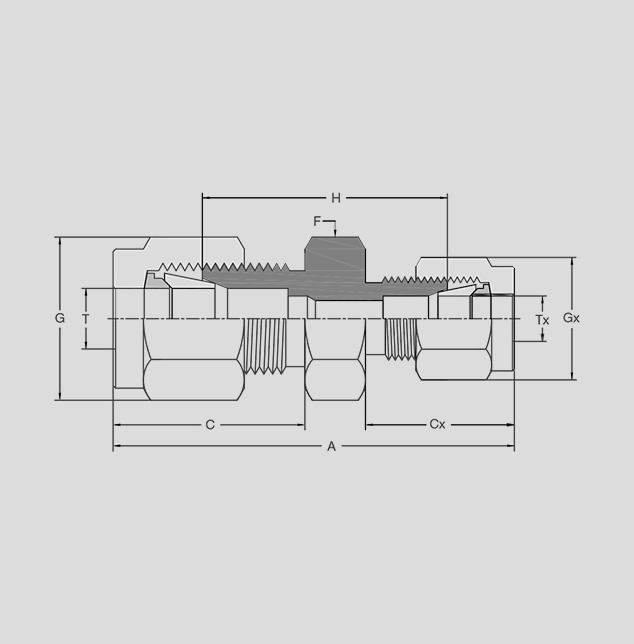

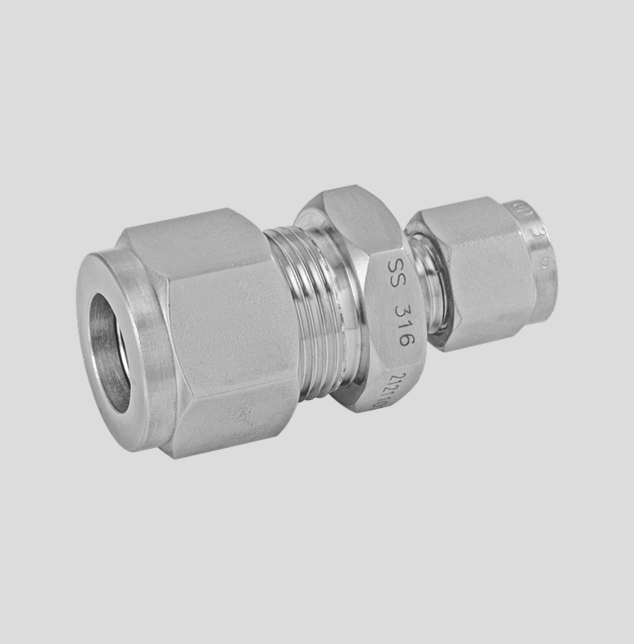

Unequal Union

PART NO.	TO/D	TX O/D	A LENGTH	C	CX	F BODY	G NUT	GX NUT	H BODY
UUI-1816	1/8	1/16	1.25	0.63	0.44	1/2	7/16	5/16	0.81
UUI-3618	3/16	1/8	1.48	0.66	0.63	1/2	1/2	7/16	0.92
UUI-1416	1/4	1/16	1.37	0.72	0.44	1/2	9/16	5/16	0.91
UUI-1418	1/4	1/8	1.56	0.72	0.63	1/2	9/16	7/16	0.97
UUI-1436	1/4	3/16	1.55	0.70	0.63	1/2	9/16	1/2	1.00
UUI-5614	5/16	1/4	1.66	0.73	0.70	9/16	5/8	9/16	1.08
UUI-3814	3/8	1/4	1.70	0.76	0.70	5/8	11/16	9/16	1.12
UUI-3856	3/8	5/16	1.74	0.76	0.73	5/8	11/16	5/8	1.16
UUI-1214	1/2	1/4	1.85	0.86	0.70	3/16	7/8	9/16	1.16
UUI-1238	1/2	3/8	1.91	0.86	0.76	13/16	7/8	11/16	1.22
UUI-5638	5/8	3/8	1.94	0.86	0.76	15/16	1	11/16	1.25
UUI-5812	5/8	1/2	2.05	0.86	0.86	15/16	1	7/8	1.25
UUI-3412	3/4	1/2	2.11	0.86	0.86	1-1/16	1-1/8	7/8	1.31
UUI-3458	3/4	5/8	2.11	0.86	0.86	1-1/16	1-1/8	1	1.31
UUI-0134	1	3/4	2.47	1.04	0.86	1-3/8	1-1/2	1-1/8	1.59

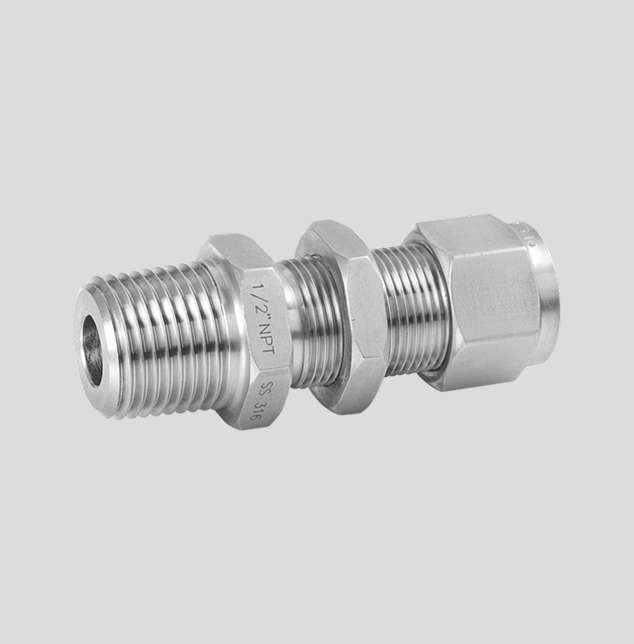

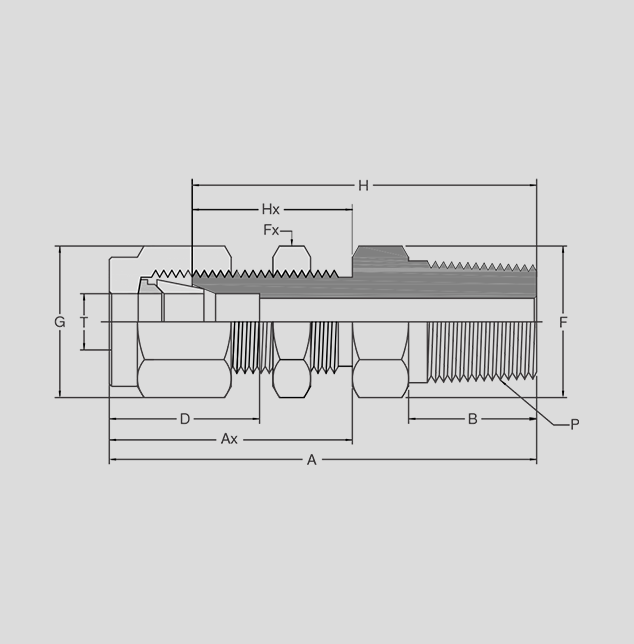

Bulkhead Male Connector

IMPERIAL RANGE							DIMENSIONS IN INCHES
PART NO.	T O/D	P	B	D	F BODY	G NUT	Fx	H	Ax	Hx	A	PANEL HOLE	MAX PANEL
BMCI-1418	1/4	1/8	0.38	0.60	5/8	9/16	5/8	1.66	1.32	1.03	1.95	29/64	0.40
BMCI-1414	1/4	1/4	0.56	0.60	5/8	9/16	5/8	1.81	1.32	1.03	2.10	29/64	0.40
BMCI-3814	3/8	1/4	0.56	0.66	3/4	11/16	3/4	1.97	1.45	1.16	2.26	37/64	0.44
BMCI-1212	1/2	1/2	0.75	0.90	15/16	7/8	15/16	2.28	1.65	1.25	2.68	49/64	0.50

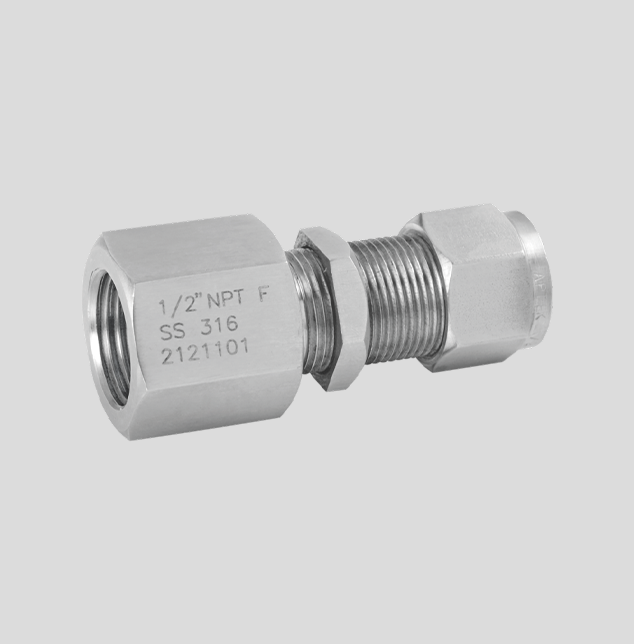

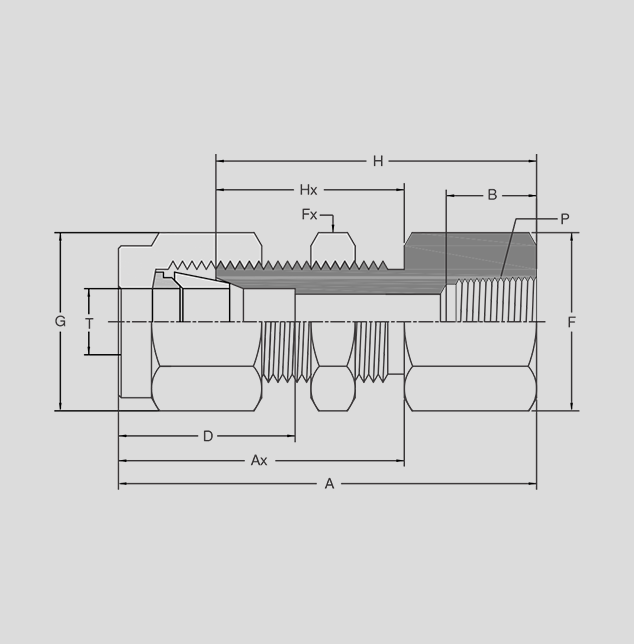

Bulkhead Female Connector

IMPERIAL RANGE							DIMENSIONS IN INCHES
PART NO.	T O/D	P	B	D	F BODY	G NUT	Fx	H	Ax	Hx	A	PANEL HOLE	MAX PANEL
BFCI-1418	1/4	1/8	0.39	0.60	5/8	9/16	5/8	1.56	1.32	1.32	1.85	0.453	0.40
BFCI-1414	1/4	1/4	0.59	0.60	3/4	9/16	5/8	1.75	1.32	1.32	2.04	0.453	0.40
BFCI-3814	3/8	1/4	0.59	0.66	3/4	11/16	3/4	1.88	1.45	1.45	2.17	0.579	0.44
BFCI-1238	1/2	3/8	0.59	0.90	0.945	7/8	0.945	2.03	1.65	1.65	2.43	0.768	0.50
BFCI-1212	1/2	1/2	0.78	0.90	1.063	7/8	0.945	2.22	1.65	1.65	2.62	0.768	0.50

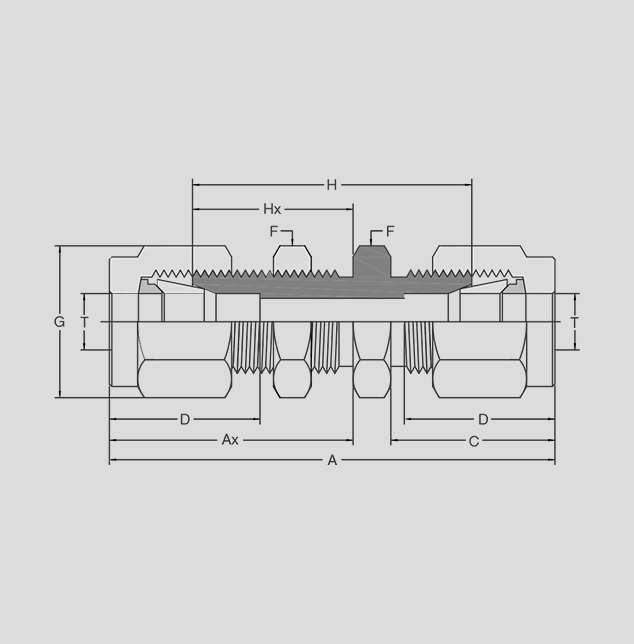

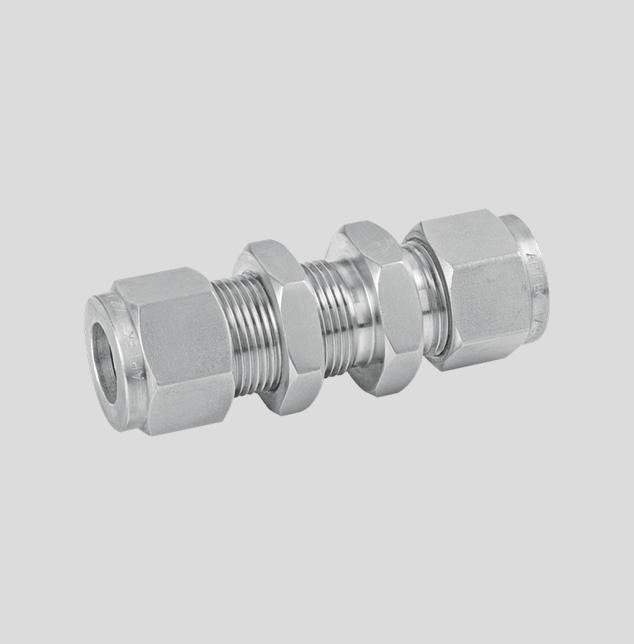

Bulkhead Union

PART NO.	T O/D	A LENGTH	C	D	F BODY	G NUT	H
BUI-16	1/16	1.24	0.43	0.34	5/16	5/16	0.94
BUI-18	1/8	2.02	0.60	0.50	1/2	7/16	1.50
BUI-36	3/16	2.11	0.63	0.54	9/16	1/2	1.59
BUI-14	1/4	2.27	0.70	0.60	5/8	9/16	1.69
BUI-56	5/16	2.39	0.73	0.64	11/16	5/8	1.81
BUI-38	3/8	2.45	0.76	0.66	3/4	11/16	1.87
BUI-12	1/2	2.80	0.86	0.90	15/16	7/8	2.00
BUI-58	5/8	2.86	0.86	0.96	1-1/16	1	2.06
BUI-34	3/4	3.11	0.86	0.96	1-3/16	1-1/8	2.31
BUI-01	1	3.77	1.04	1.23	1-5/8	1-1/2	2.81

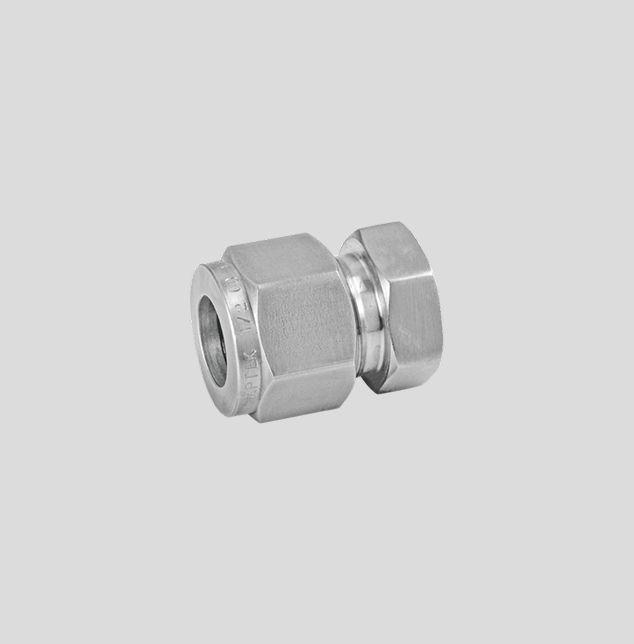

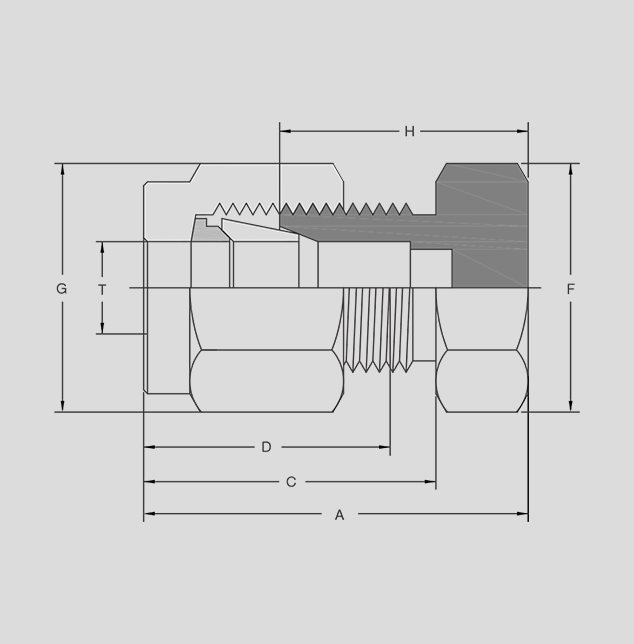

Cap

PART NO.	T O/D	A LENGTH	C	D	F BODY	G NUT	H BODY
CI-36	3/16	0.84	0.63	0.54	7/16	1/2	0.58
CI-14	1/4	0.92	0.70	0.60	1/2	9/16	0.63
CI-56	5/16	0.96	0.73	0.64	9/16	5/8	0.67
CI-38	3/8	1.01	0.76	0.66	5/8	11/16	0.72
CI-12	1/2	1.15	0.86	0.90	13/16	7/8	0.75
CI-58	5/8	1.18	0.86	0.96	15/16	1	0.78
CI-34	3/4	1.24	0.86	0.96	1-1/16	1-1/8	0.84
CI-01	1	1.51	1.04	1.23	1-3/8	1-1/2	1.03

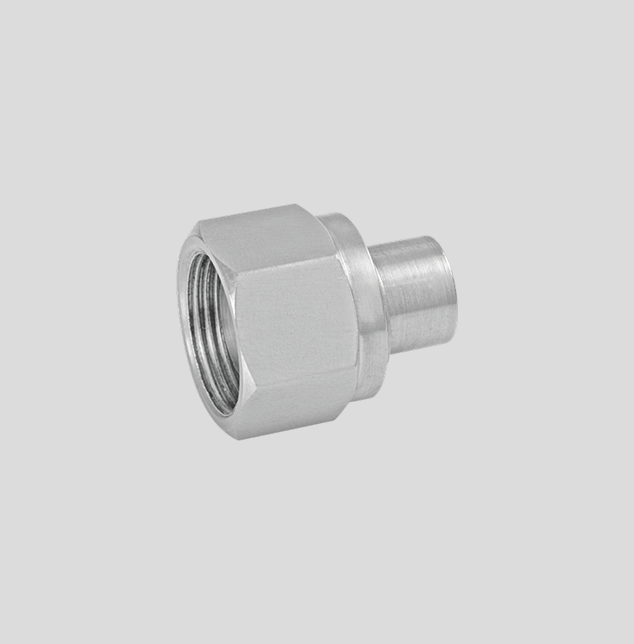

Plug

PART NO.	T O/D	G NUT
PI-16	1/16	5/16
PI-18	1/8	7/16
PI-36	3/16	1/2
PI-14	1/4	9/16
PI-56	5/16	5/8
PI-38	3/8	11/16
PI-12	1/2	7/8
PI-58	5/8	1
PI-34	3/4	1-1/8
PI-01	1	1-1/2

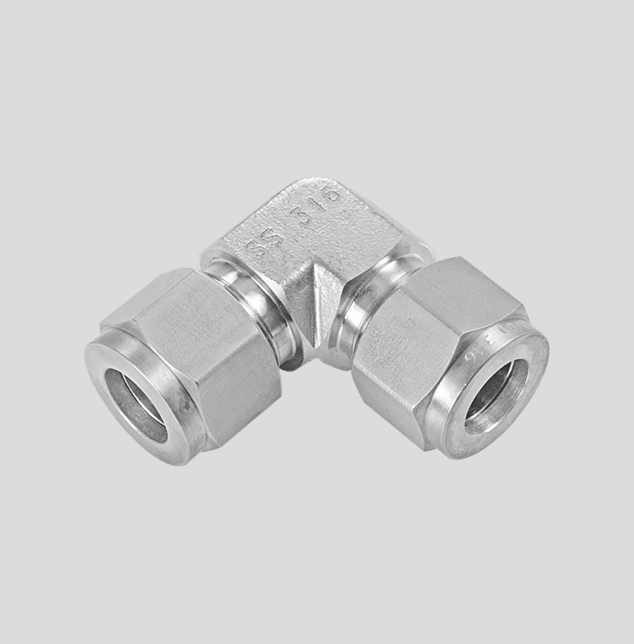

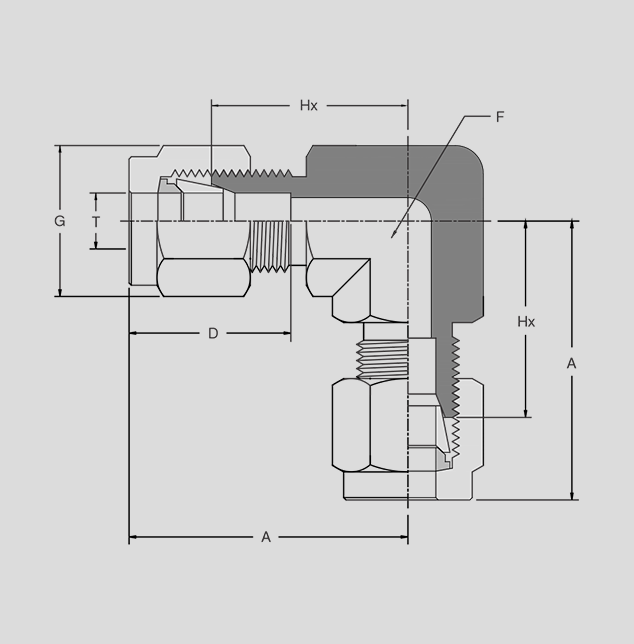

Union Elbow

PART NO.	T O/D	A LENGTH	D	F BODY	G NUT	Hx BODY
UEI-16	1/16	17.8	0.34	0.433	5/16	0.56
UEI-18	1/8	22.4	0.53	1/2	7/16	0.72
UEI-36	3/16	26	0.54	1/2	1/2	0.75
UEI-14	1/4	27	0.60	0.551	9/16	0.78
UEI-56	5/16	29	0.64	10.630	5/81	0.88
UEI-38	3/8	31	0.66	0.630	1/16	0.91
UEI-12	1/2	36	0.90	7/8	7/8	0.98
UEI-58	5/8	38	0.96	0.945	1	1.06
UEI-34	3/4	40	0.96	1.0630	1-1/8	1.11
UEI-01	1	49	1.23	1.380	1-1/2	1.31

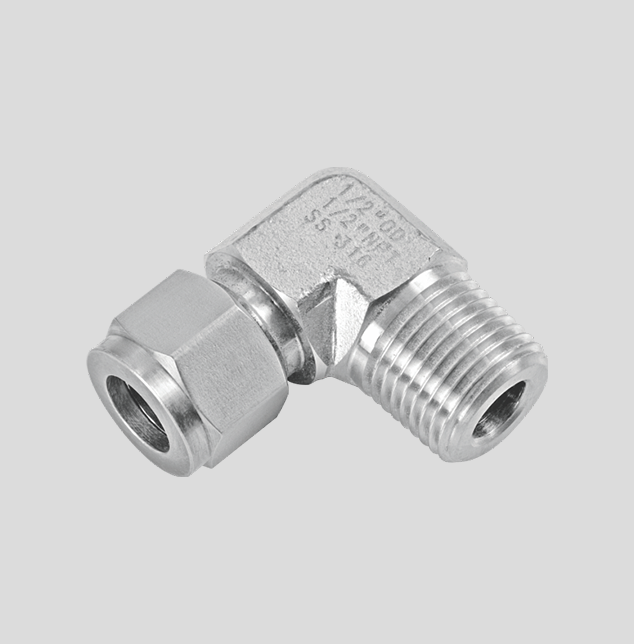

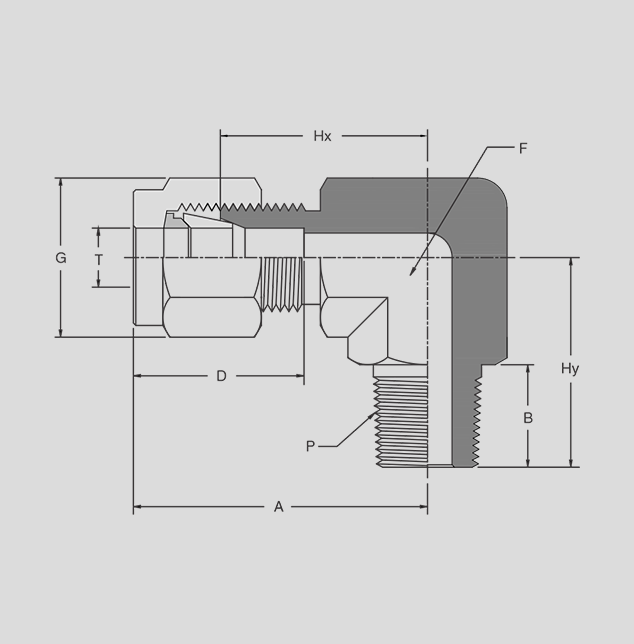

Male Elbow

PART NO.	T O/D	P	A LENGTH	B	HY	D	F BODY	G NUT	HX BODY
MEI-1616	1/16	1/16	3/4	0.38	0.690	0.34	0.47	5/16	5/8
MEI-1618	1/16	1/8	3/4	0.38	0.708	0.34	0.47	5/16	5/8
MEI-1816	1/8	1/16	1	0.38	0.748	0.51	0.47	7/16	0.708
MEI-1818	1/8	1/8	0.945	0.38	0.748	0.53	0.47	7/16	0.708
MEI-1814	1/8	1/4	0.945	0.56	0.945	0.53	0.47	7/16	0.945
MEI-3618	3/16	1/8	1	0.38	0.768	0.54	0.47	1/2	3/4
MEI-1418	1/4	1/8	1.063	0.38	0.768	0.60	0.47	9/16	0.787
MEI-1414	1/4	1/4	1.063	0.56	0.945	0.60	0.47	9/16	0.945
MEI-1438	1/4	3/8	1.181	0.56	1.024	0.60	0.55	9/16	0.866
MEI-1412	1/4	1/2	1.260	0.75	1.299	0.60	0.75	9/16	0.945
MEI-5618	5/16	1/8	1.181	0.38	0.787	0.64	0.55	5/8	0.866
MEI-5614	5/16	1/4	1.181	0.56	1	0.64	0.55	5/8	0.866
MEI-3818	3/8	1/8	1.220	0.38	0.787	0.66	0.55	11/16	0.945
MEI-3814	3/8	1/4	1.220	0.56	1	0.66	0.55	11/16	0.945
MEI-3838	3/8	3/8	1.240	0.56	1.024	0.66	0.55	11/16	0.945
MEI-3812	3/8	1/2	1.338	0.75	1.299	0.66	0.75	11/16	1
MEI-1214	1/2	1/4	1.417	0.56	1.102	0.91	0.75	7/8	1
MEI-1238	1/2	3/8	1.417	0.56	1.102	0.91	0.75	7/8	1
MEI-1212	1/2	1/2	1.456	0.75	1.299	0.91	0.75	7/8	1
MEI-5838	5/8	3/8	1.496	0.56	1.181	0.96	0.94	1	1.063
MEI-5812	5/8	1/2	1.496	0.75	1.338	0.96	0.94	1	1.063
MEI-3412	3/4	1/2	1.535	0.75	1.417	0.96	1.06	1-1/8	1.141
MEI-3434	3/4	3/4	1.535	0.75	1.417	0.96	1.06	1-1/8	1.141
MEI-0134	1	3/4	1.929	0.94	1.654	1.23	1.25	1-1/2	1.338
MEI-0101	1	1	1.929	0.94	1.850	1.23	1.25	1-1/2	1.338

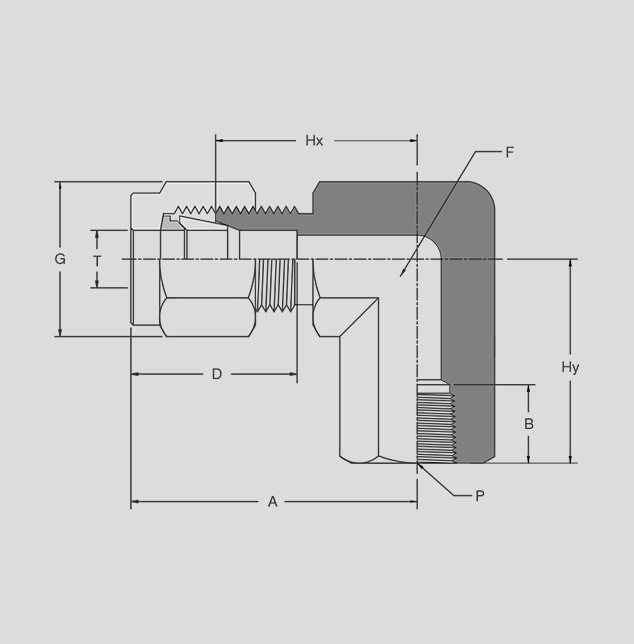

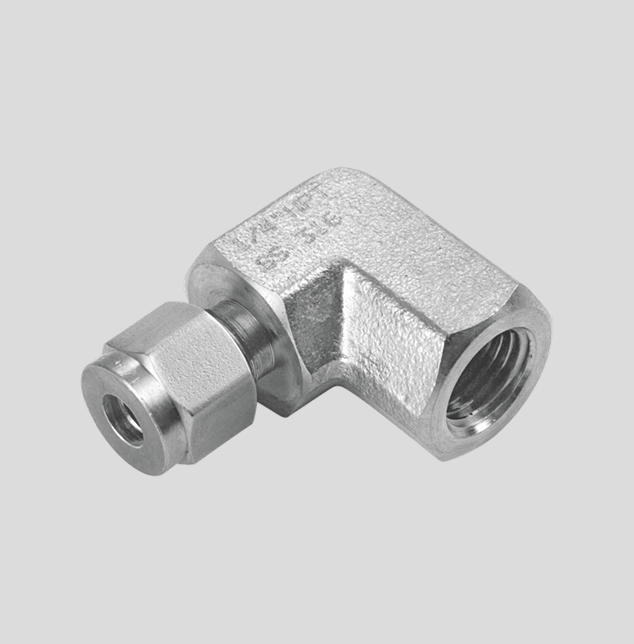

Female Elbow

IMPERIAL RANGE					DIMENSIONS IN INCHES
PART NO.	T O/D	P	A LENGTH	B	HY	D	F BODY	G NUT	HX BODY
FEI-1818	1/8	1/8	0.95	0.39	0.15	0.50	0.551	7/16	0.708
FEI-1814	1/8	1/4	1.07	0.59	0.88	0.50	0.748	7/16	0.825
FEI-3618	3/16	1/8	0.98	0.39	0.75	0.54	0.551	1/2	0.703
FEI-1418	1/4	1/8	1.04	0.39	0.75	0.60	0.551	9/16	0.749
FEI-1414	1/4	1/4	1.17	0.59	0.88	0.60	0.630	9/16	0.886
FEI-5618	5/16	1/8	1.17	0.39	0.75	0.64	0.551	5/8	0.866
FEI-5614	5/16	1/4	1.20	0.59	0.88	0.64	0.748	5/8	0.905
FEI-3818	3/8	1/8	1.20	0.39	0.75	0.66	0.748	11/16	0.905
FEI-3814	3/8	1/4	1.23	0.59	0.88	0.66	0.748	11/16	0.945
FEI-3838	3/8	3/8	1.32	0.59	0.88	0.66	0.748	11/16	1.027
FEI-3812	3/8	1/2	1.41	0.78	1.12	0.66	1.102	11/16	1.102
FEI-1214	1/2	1/4	1.38	0.59	0.88	0.90	0.748	7/8	1.000
FEI-1238	1/2	3/8	1.43	0.59	0.88	0.90	0.748	7/8	1.023
FEI-1212	1/2	1/2	1.52	0.78	1.12	0.90	1.102	7/8	1.142
FEI-5838	5/8	3/8	1.46	0.59	0.88	0.96	0.748	1	1.102
FEI-5812	5/8	1/2	1.52	0.78	1.12	0.96	1.102	1	1.142
FEI-3412	3/4	1/2	1.51	0.78	1.12	0.96	1.102	1-1/8	1.102
FEI-3434	3/4	3/4	1.65	0.81	1.25	0.96	1.102	1-1/8	1.260

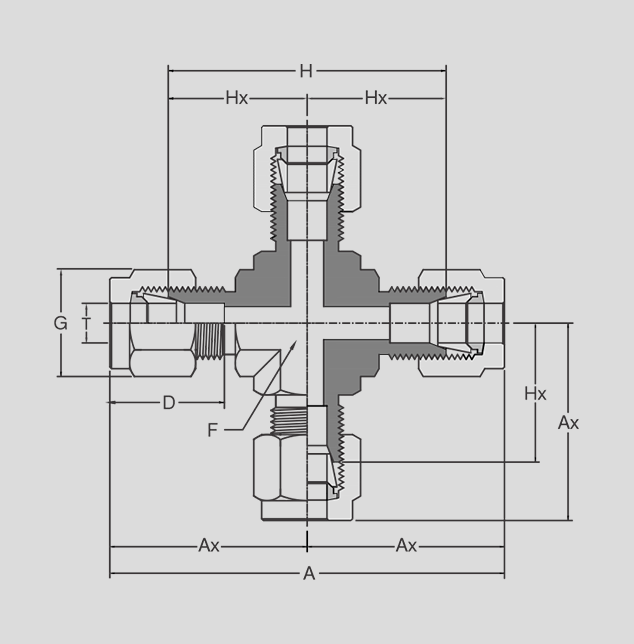

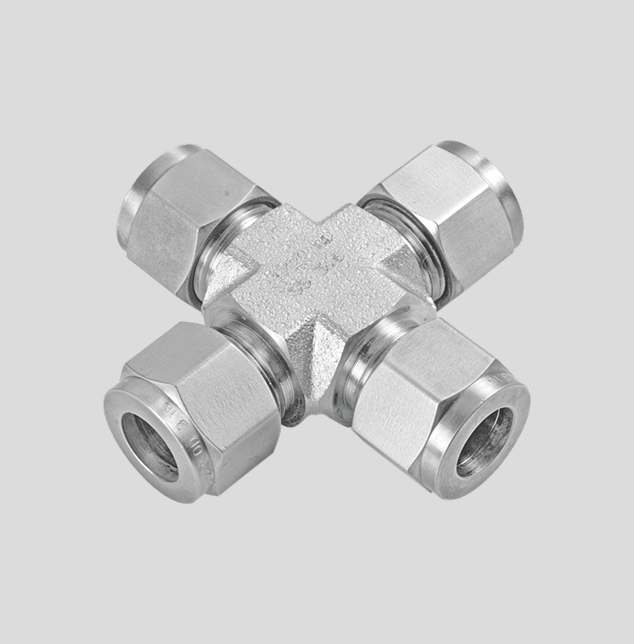

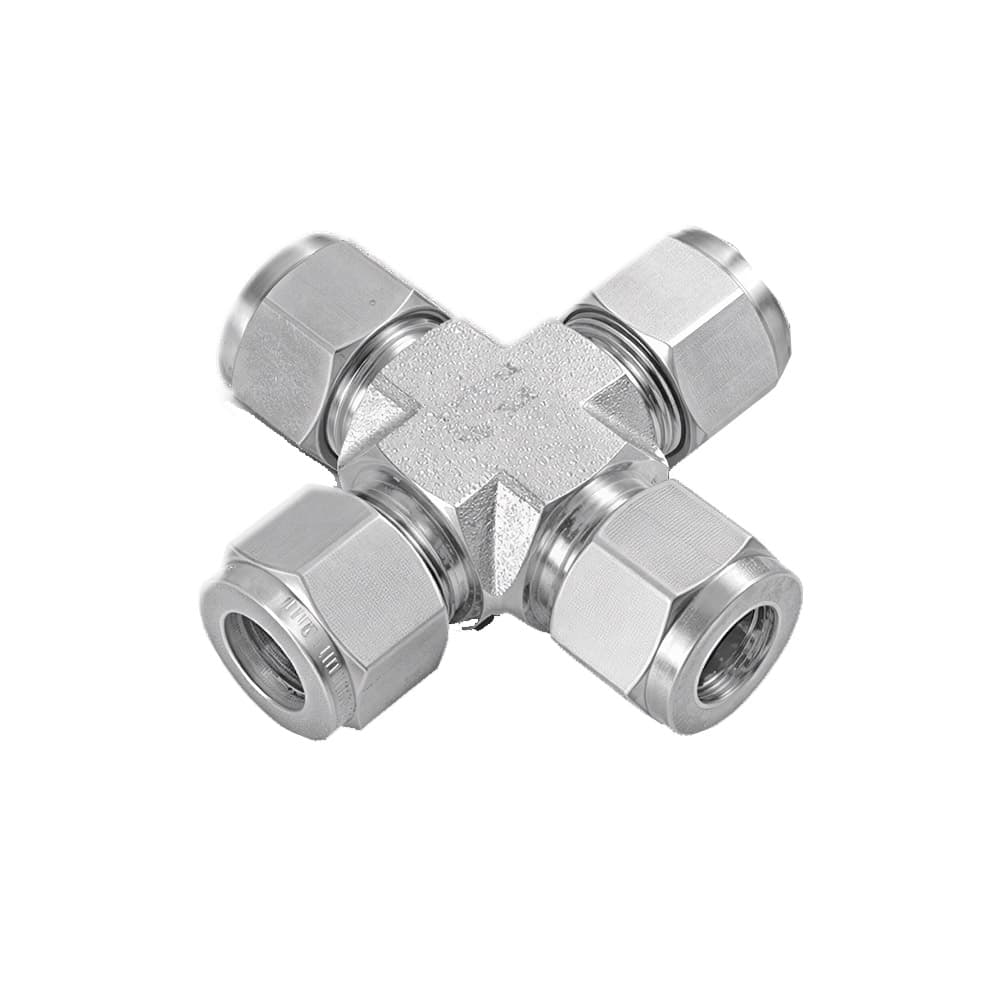

Equal Union Cross

PART NO.	T O/D	AX LENGTH	D	F BODY	G NUT	HX BODY	H	A
UCI-18	1/8	0.99	0.53	1/2	7/16	0.72	1.44	1.98
UCI-36	3/16	1.01	0.54	1/2	1/2	0.75	1.50	2.02
UCI-14	1/4	1.07	0.60	9/16	9/16	0.78	1.56	2.14
UCI-56	5/16	1.17	0.64	5/8	5/8	0.88	1.76	2.34
UCI-38	3/8	1.20	0.66	5/8	1/16	0.91	1.82	2.40
UCI-12	1/2	1.38	0.90	7/8	7/8	0.98	1.96	2.76
UCI-58	5/8	1.46	0.96	0.81	1	1.06	2.12	2.92

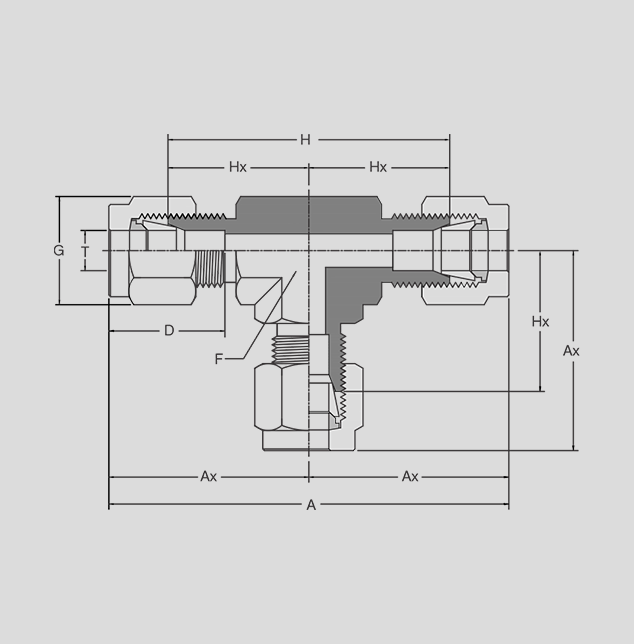

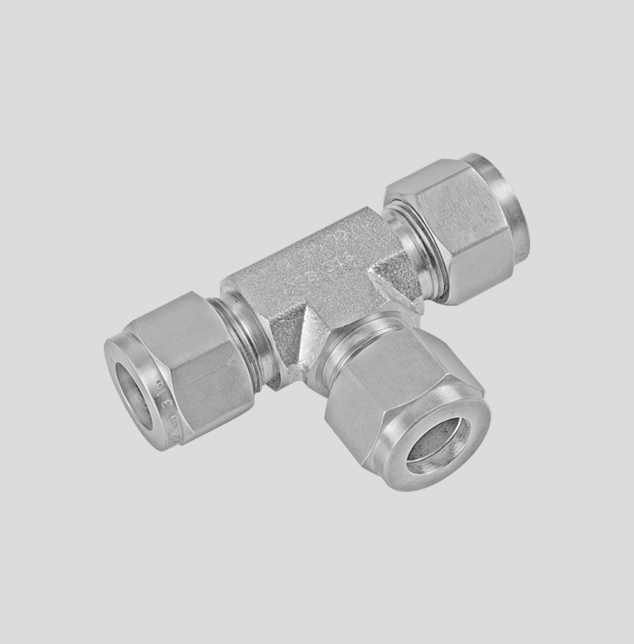

Union Tee

PART NO.	T O/D	AX LENGTH	D	F BODY	G NUT	HX BODY	H	A
UTI-16	1/16	0.72	0.34	0.47	5/16	0.56	1.12	1.44
UTI-18	1/8	0.99	0.50	0.47	7/16	0.72	1.44	1.98
UTI-36	3/16	1.01	0.54	0.47	1/2	0.75	1.50	2.02
UTI-14	1/4	1.07	0.60	0.47	9/16	0.78	1.56	2.25
UTI-56	5/16	1.17	0.64	0.55	5/8	0.88	1.76	2.34
UTI-38	3/8	1.20	0.66	0.55	11/16	0.91	1.82	2.40
UTI-12	1/2	1.30	0.90	0.75	7/8	0.98	1.96	2.76
UTI-58	5/8	1.46	0.96	0.94	1	1.06	2.12	2.92
UTI-34	3/4	1.51	0.96	1.06	1-1/8	1.11	2.22	3.02
UTI-01	1	1.79	1.23	1.25	1-1/2	1.31	2.62	3.58

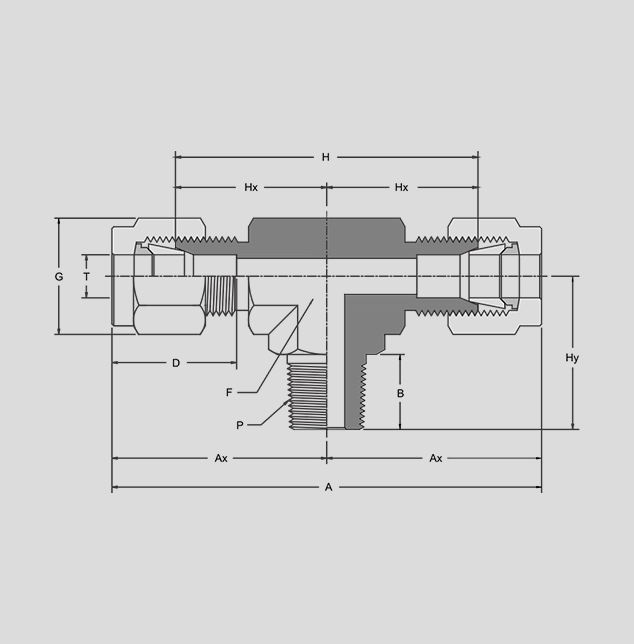

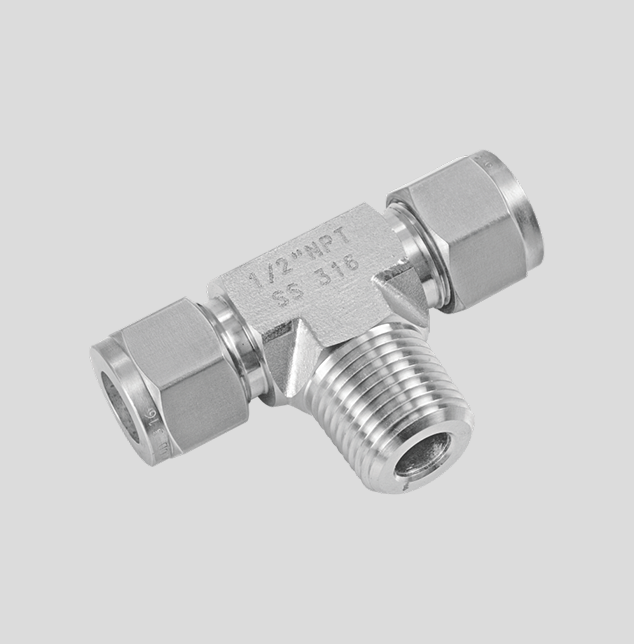

Male Branch Tee

PART NO.	T O/D	P	AX LENGTH	B	HY	F	G NUT	HX BODY	H	A
BTI-1818	1/8	1/8	0.99	0.38	0.76	1/2	7/16	0.72	1.44	1.98
BTI-1814	1/8	1/4	0.99	0.56	0.94	0.551	7/16	0.72	1.44	1.98
BTI-3618	3/16	1/8	1.01	0.38	0.76	1/2	1/2	0.75	1.50	2.02
BTI-1418	1/4	1/8	1.07	0.38	0.76	1/2	9/16	0.78	1.56	2.14
BTI-1414	1/4	1/4	1.07	0.56	0.94	0.551	9/16	0.78	1.56	2.14
BTI-1438	1/4	3/8	1.13	0.56	1.00	3/4	9/16	0.84	1.68	2.26
BTI-5618	5/16	1/8	1.16	0.38	0.82	3/4	5/8	0.87	1.74	2.32
BTI-3818	3/8	1/8	1.21	0.38	0.82	3/4	11/16	0.91	1.82	2.42
BTI-3814	3/8	1/4	1.21	0.56	1.00	3/4	11/16	0.91	1.82	2.42
BTI-3838	3/8	3/8	1.21	0.56	1.00	3/4	11/16	0.91	1.82	2.42
BTI-3812	3/8	1/2	1.21	0.75	1.26	7/8	11/16	0.91	1.82	2.42
BTI-1214	1/2	1/4	1.38	0.56	1.08	7/8	7/8	0.98	1.96	2.76
BTI-1238	1/2	3/8	1.38	0.56	1.08	7/8	7/8	0.98	1.96	2.76
BTI-1212	1/2	1/2	1.38	0.75	1.26	7/8	7/8	0.98	1.96	2.76
BTI-5812	5/8	1/2	1.46	0.75	1.38	0.945	1	1.06	2.12	2.92

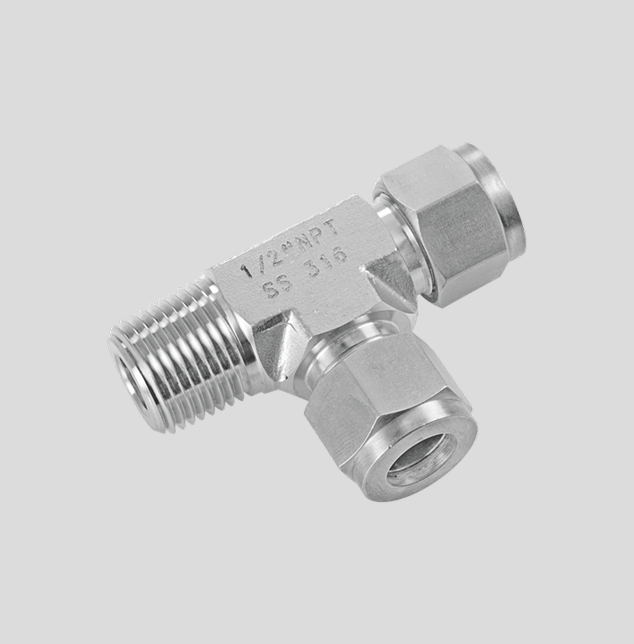

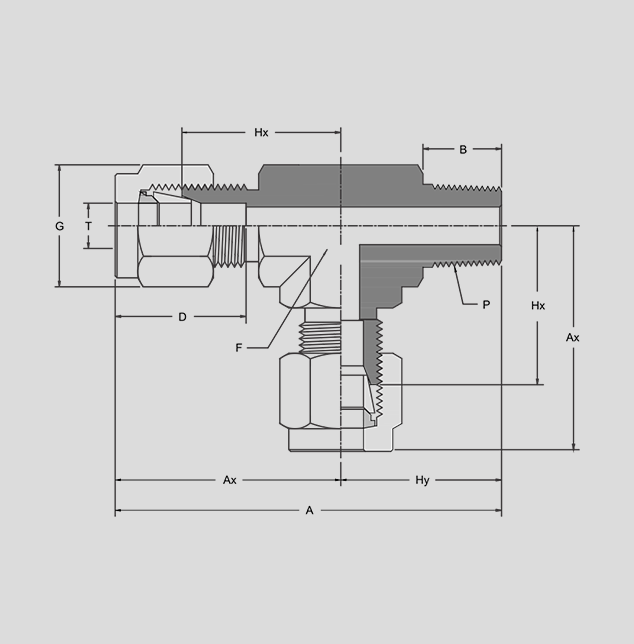

Male Run Tee

PART NO.	T O/D	P	AX LENGTH	B	HY	F	G NUT	HX BODY	H	A
RTI-1818	1/8	1/8	1.00	0.38	0.76	0.47	7/16	0.72	1.48	1.76
RTI-1814	1/8	1/4	1.00	0.56	0.94	0.47	7/16	0.72	1.66	1.94
RTI-3618	3/16	1/8	1.00	0.38	0.76	0.47	1/2	0.75	1.51	1.76
RTI-1418	1/4	1/8	1.07	0.38	0.76	0.47	9/16	0.78	1.54	1.83
RTI-1414	1/4	1/4	1.07	0.56	0.94	0.47	9/16	0.78	1.72	2.01
RTI-5618	5/16	1/8	1.16	0.38	0.82	0.55	5/8	0.87	1.70	1.98
RTI-3814	3/8	1/4	1.21	0.56	1.00	0.55	11/16	0.91	1.91	2.21
RTI-1238	1/2	3/8	1.38	0.56	1.08	0.74	7/8	0.98	2.06	2.46
RTI-1212	1/2	1/2	1.38	0.75	1.26	0.74	7/8	0.98	2.24	2.64
RTI-5812	5/8	1/2	1.47	0.75	1.38	0.74	1	1.06	2.40	2.85

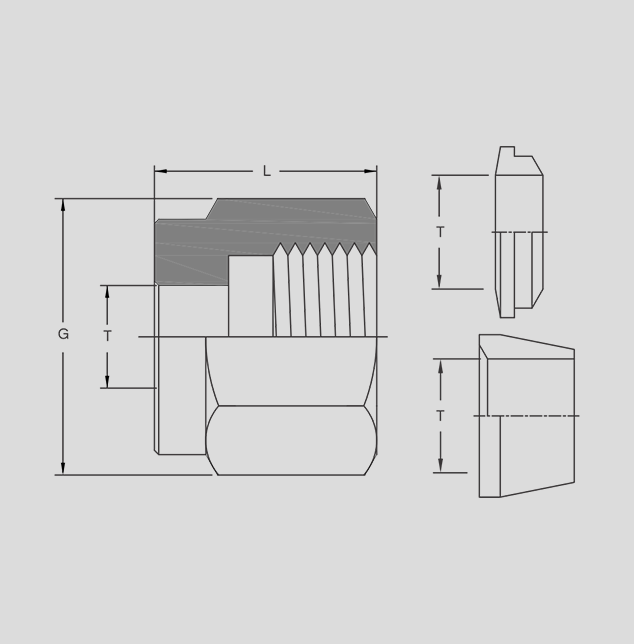

Nut & Ferrules

PART NO.	T O/D	G NUT A/F	L
NI-16	1/16	5/16	0.31
NI-18	1/8	7/16	0.47
NI-36	3/16	1/2	0.50
NI-14	1/4	9/16	0.50
NI-56	5/16	5/8	0.53
NI-38	3/8	11/16	0.56
NI-12	1/2	7/8	0.69
NI-58	5/8	1	0.69
NI-34	3/4	1-1/8	0.69
NI-01	1	1-1/2	0.81
